CEDT200L DiamondTemp™ Ablation Catheter  Unidirectional  Large Curve, 8 Fr x 110  cm, Box of 01

DiamondTemp ™ ablation catheter — type: unidirectional, curve size: large, reach: 45 mm, shaft size: 8.0 Fr, usable length: 110 cm, catheter tip electrode: 4.1 mm, distal electrode: 0.6 mm, number of electrodes: 4

Indications (or Intended Use)

• The DiamondTemp catheter is indicated for use in cardiac electrophysiological mapping (stimulation and recording) and for treatment of drug refractory, recurrent, symptomatic paroxysmal atrial fibrillation when used in conjunction with the DiamondTemp RF generator and accessories (DiamondTemp catheter-to-RF generator cable, DiamondTemp GenConnect cable, DiamondTemp EGM cable, DiamondTemp irrigation pump, DiamondTemp irrigation tubing set) and compatible mapping system

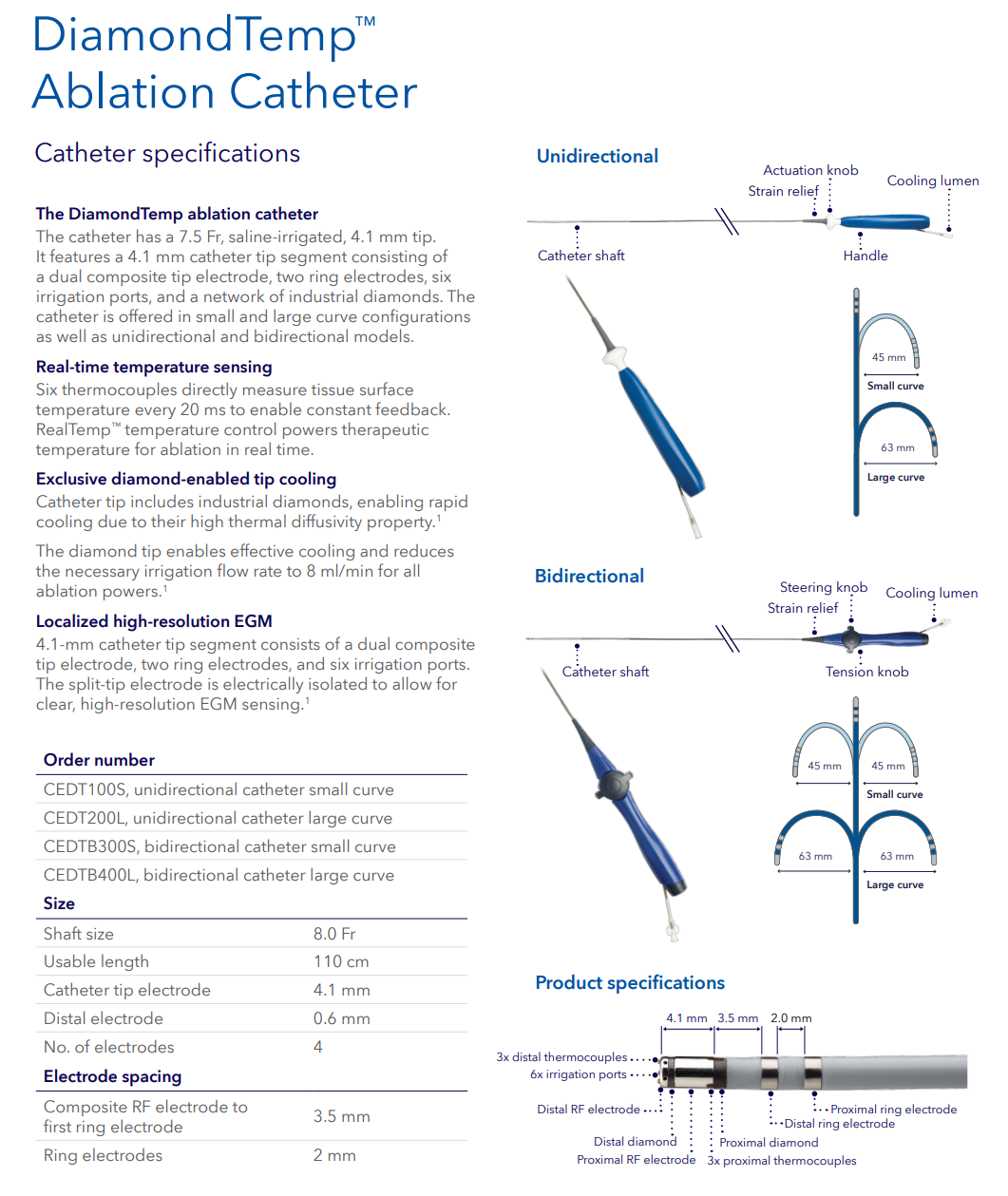

DiamondTemp™ ablation catheter The DTA is a sterile, single-use, externally irrigated catheter.

The DTA catheter:

• Has an 8.0 Fr shaft and saline-irrigated, 4.1 mm tip
• Features a tip segment consisting of a dual composite tip electrode, two ring electrodes, six irrigation ports, and a network of industrial diamonds
• Includes customized offerings: – Small curve (45 mm) and large curve (63 mm) configurations – Unidirectional and bidirectional models

CEDT200L
