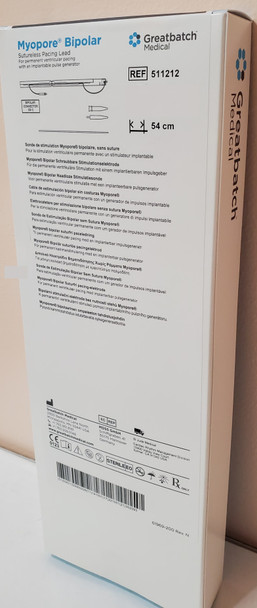

Greatbatch 511212 Myopore Bipolar Sutureless Pacing Lead 54cm, Box of 01
- SKU:
- 511212
- MPN:
- 511212
- Availability:
- ships in 2-3 business days
Description
Non-Returnable Items
Greatbatch 511212 Myopore Bipolar Sutureless Pacing Lead 54cm, Box of 01
511212 BIOMEC, BI, Epicardial Lead, 54cm one each
For permanent ventricular pacing with an implantable pulse generator
DEVICE DESCRIPTION/GENERAL INFORMATION
The Greatbatch Medical Myopore® Bipolar Sutureless Myocardial Pacing Lead is designed for long term ventricular pacing and sensing.
The FasTac® Introducer aids attachment of the lead to the epicardial surface of the heart.
The lead is packaged pre-loaded onto the FasTac Introducer, ready to use.
Reloading of the lead can be accomplished in a few seconds. The lead may be detached from the introducer FasTac Introducer using only one hand. The FasTac Introducer allows for re-grasping the lead using only one hand. Multiple leads may be implanted to meet varied patient systems requirements. The lead and accessories are sterile packaged. STERILE
| Models | 511210 (25 cm) | 511211 (35 cm) | 511212 (54 cm) |
| Electrode surface area -cathode -anode | 10 mm2 62 mm2 | 10 mm2 62 mm2 | 10 mm2 62 mm2 |
| Helix penetration depth | 3.5 mm | 3.5 mm | 3.5 mm |
| Number of helix turns | 2.25 | 2.25 | 2.25 |
| Lead Resistance -cathode -anode | 20 Ohms 38 Ohms | 27 Ohms 46 Ohms | 41 Ohms 75 Ohms |
| Lead length | 25 cm | 35 cm | 54 cm |
| FasTac Introducer length | 27 cm | 27 cm | 27 cm |
| Tunneler Length | 27 cm | 27 cm | 27 cm |
| Connector type | IS-1 Bl* | IS-1 Bl* | IS-1 Bl* |
| Electrode material -helix -anode plate | Platinum/Iridium Titanium | Platinum/Iridium Titanium | Platinum/Iridium Titanium |
| Conductor material | MP35N (Mulitifilar coil) | MP35N Multifilar coil) | MP35N (Multifilar coil) |
| Insulation material | Silicone Rubber (Medical Grade) | Silicone Rubber (Medical Grade) | Silicone Rubber (Medical Grade) |
| Connector pin material | 316L Stainless Steel | 316L Stainless Steel | 316L Stainless Steel |
