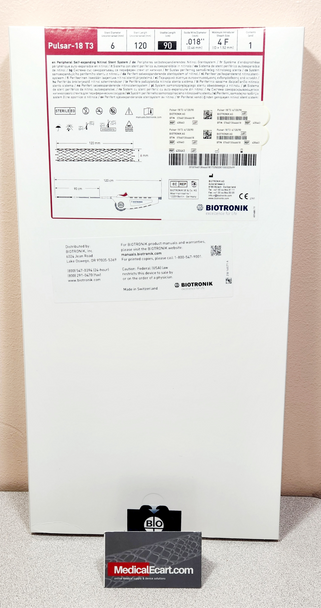

BIOTRONIK 430463, Pulsar-18 T3, Peripheral Self-Expanding Stent System/0.018”/OTW, 4Fr, Diameter 6mm, Lenght 120mm, Usable length 90cm, Box of 01
- SKU:
- 430463
- MPN:
- 430463
- Availability:
- 5-7 Business Days
Description
BIOTRONIK 430463, Pulsar-18 T3, Peripheral Self-Expanding Stent System/0.018”/OTW, 4Fr, Diameter 6mm, Lenght 120mm, Usable length 90cm, Box of 01
- Pulsar®-18 T3 Peripheral Self-Expanding Nitinol Stent System The Pulsar®-18 T3 Peripheral Nitinol Stent is a self-expandable stent made from a laser-cut nitinol tube completely covered with a thin layer of proBIO amorphous silicon carbide coating.
- The stent is delivered into your peripheral arteries with a stent delivery system.
- The stent stays in your body permanently to support the vessel and improve blood flow.
- The stent is designed to be strong to keep the artery open and also very flexible, allowing it to fit the shape of your artery.
Technical Data
| Pulsar-18 T3 Stent | |
|---|---|
| Catheter type | OTW |
| Recommended guide wire | 0.018" |
| Stent material | Nitinol |
| Strut thickness | 140 μm |
| Strut width | 85 μm - 90 μm |
| Stent coating | proBIO®️(Amorphous Silicon Carbide) |
| Stent markers | 6 gold markers each end |
| Sizes | ø 4.0 - 7.0 mm; L: 20 - 200 mm |
| Shaft | 4F, hydrophobic coating, tri-axial |
| Usable length | 90 cm and 135 cm |
Ordering Information
| Stent ø (mm) | Catheter length 90 cm (Stent length mm) | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 20 | 30 | 40 | 60 | 80 | 100 | 120 | 150 | 170 | 200 | ||
| 4.0(4F) |
| 430437 | 430438 | 430439 | 430440 | 430441 | 430442 | 430443 | 430444 | 430445 | 430446 |
| 5.0(4F) |
| 430447 | 430448 | 430449 | 430450 | 430451 | 430452 | 430453 | 430454 | 430455 | 430456 |
| 6.0(4F) |
| 430457 | 430458 | 430459 | 430460 | 430461 | 430462 | 430463 | 430464 | 430465 | 430466 |
| 7.0(4F) |
| 430467 | 430468 | 430469 | 430470 | 430471 | 430472 | 430473 | 430474 | 430475 | 430476 |
| Stent ø (mm) | Catheter length 135 cm (Stent length mm) | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 20 | 30 | 40 | 60 | 80 | 100 | 120 | 150 | 170 | 200 | ||
| 4.0(4F) | 430477 | 430478 | 430479 | 430480 | 430481 | 430482 | 430483 | 430484 | 430485 | 430486 | |
| 5.0(4F) | 430487 | 430488 | 430489 | 430490 | 430491 | 430492 | 430493 | 430494 | 430495 | 430496 | |
| 6.0(4F) | 430497 | 430498 | 430499 | 430500 | 430501 | 430502 | 430503 | 430504 | 430505 | 430506 | |
| 7.0(4F) | 430507 | 430508 | 430509 | 430510 | 430511 | 430512 | 430513 | 430514 | 430515 | 430516 | |
