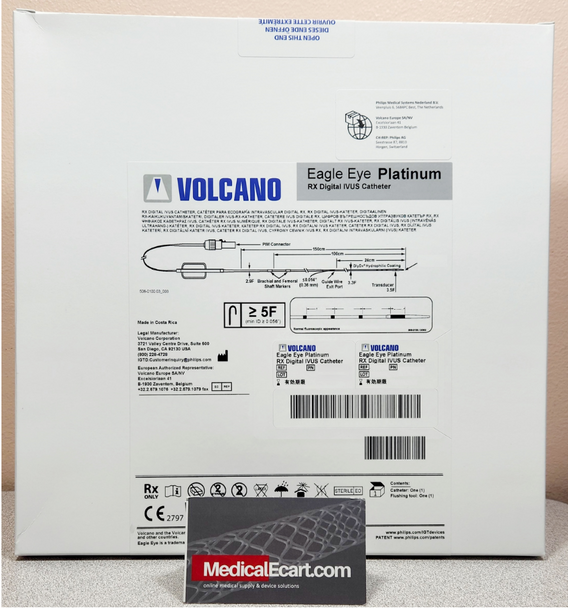

Philips 85900PST Volcano Eagle Eye Platinum ST (Short Tip), RX Digital IVUS catheter 5Fr, 014" X 150cm, Box of 01

Philips 85900PST Volcano Eagle Eye Platinum ST (Short Tip), RX Digital IVUS catheter 5Fr, 014" X 150cm, Box of 01

The Eagle Eye Platinum ST digital IVUS catheter offers a 2.5 mm tip-to-imaging distance designed to assess more of the vessel than standard catheters by providing a closer visualization of highly stenosed lesions and distal anatomy.

The short tip catheter fits through all 5F guides and has all features of our top-selling Eagle Eye Platinum model, including plug-and-play simplicity, three radiopaque markers, GlyDx hydrophilic coating, and SyncVision compatibility

Improved deliverability in tortuosity

• The Eagle Eye Platinum ST catheter offers improved deliverability through tortuosity, compared to the Eagle Eye Platinum catheter in a tortuous benchtop model

Plug-and-play for immediate imaging

• The plug-and-play simplicity and digital, solid state design of the Eagle Eye Platinum ST digital IVUS catheter provides a fast, easy approach for IVUS imaging. There is no motor drive, no moving parts, and no pullback device required. Additionally, you don’t have to worry about flushing or priming of the transducer before a procedure.

Closer visualization

• A shorter-tip design allows for further advancement of the transducer in a highly stenosed or distal vessel, allowing you to image more distally. Like the Eagle Eye Platinum catheter, the device has both coronary and peripheral indications.

• The improved GlyDx hydrophilic coating, applied to the distal portion of the catheter, provides increased lubricity and durability during use. The tapered tip and long rapid exchange lumen add pushability.

• Like Eagle Eye Platinum, the ST model fits in 5F guide catheters with a 0.056” inner diameter. The low profile and shaft transitions allow for greater clearance with complex cases where an IVUS catheter needs to fit side-by-side in a larger guide with buddy wires. For example, Eagle Eye Platinum can be used with a Terumo Finecross microcatheter in a 7F guide

• The Eagle Eye Platinum ST digital IVUS catheter system is compatible with SyncVision co-registration which creates a three-way association between locations on the angiogram, longitudinal IVUS display, and tomographic IVUS frames. SyncVision simplifies vessel sizing, streamlines lesion assessment, and enables precise therapy delivery.

• Relying on angiograms, alone, may make it difficult to estimate the length of bifurcation, ostial, and tortuous lesions. The Eagle Eye Platinum ST catheter features three radiopaque markers with 10 mm spacing facilitating length estimation without the need for a marker wire or pullback device. SyncVision’s Co-registration measures accurate length even with a manual pullback.
