Philips 501-112 VisiSheath Dilator Sheath, Size S, Minimum Inner Diameter 12.8F / 0.168" / 4.2 mm, Maximum Outer Diameter 16.4F / 0.215" / 5.5 mm, Length 33 cm. Box of 01
(No reviews yet)
Write a Review
- SKU:
- 501-112
- MPN:
- 501-112
- Availability:
- 5-7 Business Days
Frequently bought together:
Description
Philips 501-112 VisiSheath Dilator Sheath, Size S, Minimum Inner Diameter 12.8F / 0.168" / 4.2 mm, Maximum Outer Diameter 16.4F / 0.215" / 5.5 mm, Length 33 cm. Box of 01

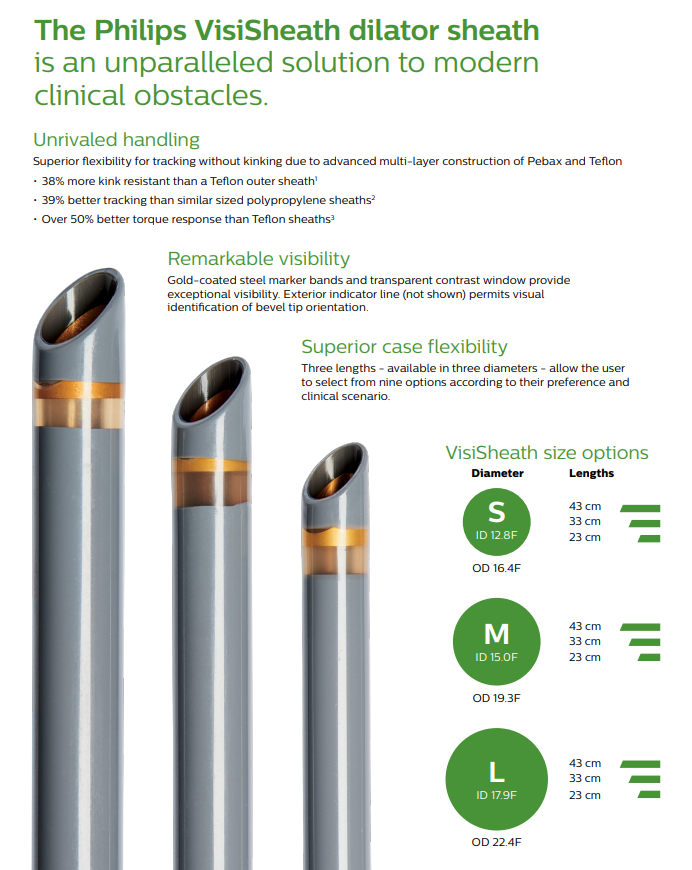

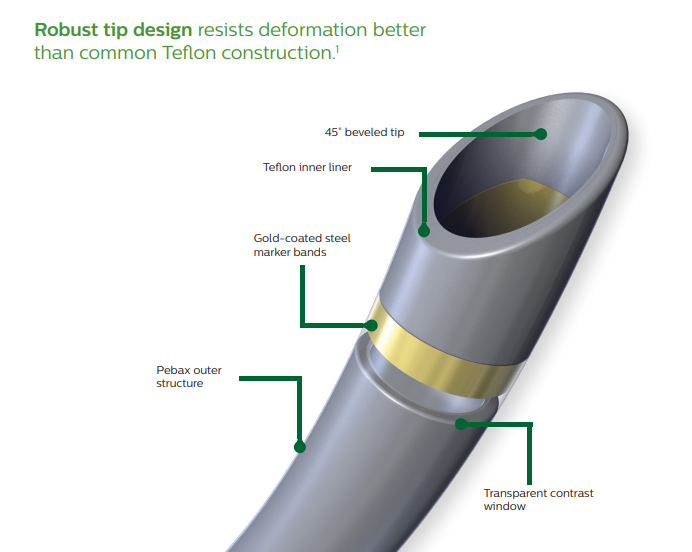

The VisiSheath Dilator Sheath is a single lumen sheath used independently or as a support for an inner sheath to facilitate tissue dilation. One end is terminated with a 45° angle cut, while the other end is blunt. Both ends contain a radiopaque marker band to enable fluoroscopic identification of tip location and orientation. An additional exterior mark
aligned with the tip of the 45° angle cut permits visual identification of sheath orientation. There are multiple diameter and length options available
aligned with the tip of the 45° angle cut permits visual identification of sheath orientation. There are multiple diameter and length options available
