Shockwave Medical JVNPIVLF Javelin FLX Peripheral Intravascular Lithotripsy (IVL) Catheter, 1.5 mm x 25 mm x 150 cm. Box of 01

Shockwave Medical JVNPIVLF Javelin FLX Peripheral Intravascular Lithotripsy (IVL) Catheter, 1.5 mm x 25 mm x 150 cm. Box of 01

The Shockwave Medical IVL System with the Javelin Peripheral IVL Catheter is intended for lithotripsy-enabled modification and crossing of calcified lesions in the peripheral vasculature, including the iliac, femoral, ilio-femoral, popliteal, and infra-popliteal arteries, prior to final treatment.

Not for use in the coronary, carotid, cerebral or pulmonary vasculature.

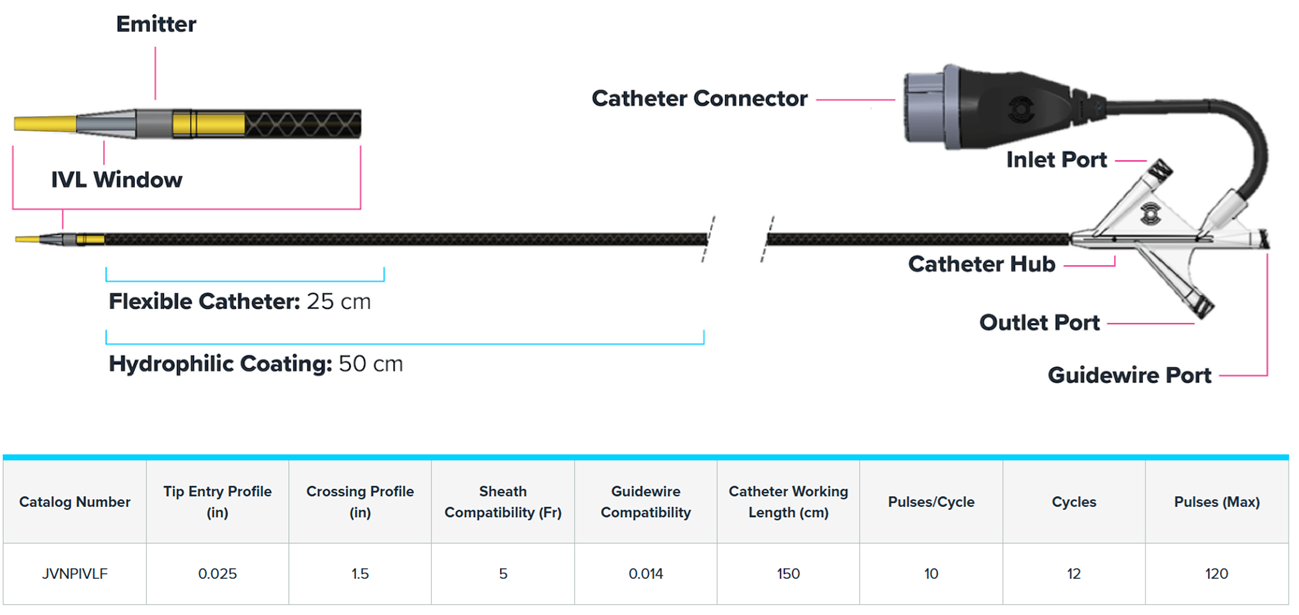

Shockwave Javelin Peripheral IVL Catheter

o The following configurations are available:

• Javelin FLX with 25 cm flexible distal section

o Crossing profile ≤ 1.5 mm
o 150 cm catheter working length
o 5 Fr introducer sheath compatible
o 0.014”(0.36 mm)guide wire compatible (OTW–300 cm wire)
o 5”x96” (13x244 cm) Sterile Cable Sleeve

Shockwave Javelin: Crack & Cross Calcified Occlusive Disease

Get Shockwave IVL closer to occlusive calcium than ever before with Shockwave Javelin.* Its non-balloon-based design and single distal emitter enable you to modify and cross tight, challenging lesions, while minimizing complications like distal embolization.

First-of-its-kind Forward IVL platform transforms treatment of difficult-to-cross lesions

• With a forward emitter situated within an IVL window, it’s uniquely designed to address challenging lesions where other devices may be unable to cross.

Single distal emitter delivers energy & cracks calcium beyond the tip

• Located 3 mm from the tip, the emitter’s spherical energy enables cracking of calcium in front of the catheter

Proven safety & efficacy profile consistent with Balloon IVL platform

• This novel device leverages robust clinical data around the safety and efficacy of Shockwave IVL’s mechanism of action.
