Abbott 22437-19 Emboshield NAV6™ Embolic Protection System, 5.0mm Filter Diameter X 190cm Wire Length, Box of 01

Abbott 22437-19 Emboshield NAV⁶™ Embolic Protection System, 5.0mm Filter Diameter X 190cm Wire Length, Box of 01

The Emboshield NAV⁶™ Embolic Protection System is indicated for use as a guide wire and embolic protection system to contain and remove embolic material (thrombus / debris) while performing angioplasty and stenting procedures in carotid arteries and while performing atherectomy, during standalone procedures or together with PTA and/or stenting, in lower extremity arteries.

The diameter of the artery at the site of the Filtration Element placement should be between 2.5 and 7.0 mm.

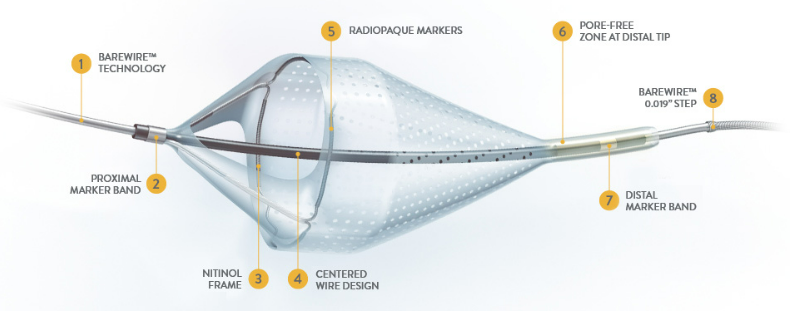

Unique Features: Filter and BareWire™ Delivery Wires

Filter

• 120-µm Pore Size
  Effectively captures debris while also allowing blood flow


• High-Strength Nylon Filter Material
  Is designed to enhance capture efficiency by maintaining wall apposition and protecting the vessel wall from direct contact with the nitinol frame


• Non-thrombogenic Hydrophilic Coating
  Is designed to reduce platelet or protein adhesion

1. BareWire™ Technology

• Is a proprietary wire technology that enables guide wire-only access through the lesion and ensures stable filter position


2. Proximal Marker Band

• Includes proprietary radiopaque markers for smooth tracking through tortuous anatomy


3. Nitinol Frame

• Is designed for outstanding circumferential wall apposition—even on a bend—and collapses into a low-profile wrap down during filter retrieval

4. Centered Wire Design

• Prevents filter bias against the vessel wall and allows effective capture in all vessel types

5. Radiopaque Markers

• To convey vessel apposition and deployment status


6. Pore-free Zone at Distal Tip

• Prevents extrusion of embolic material during blood flow


7. Distal Marker Band

• Includes proprietary radiopaque markers for smooth tracking through tortuous anatomy


8. BareWire™ 0.019” Step

• Acts as a distal stop for the Filtration Element
